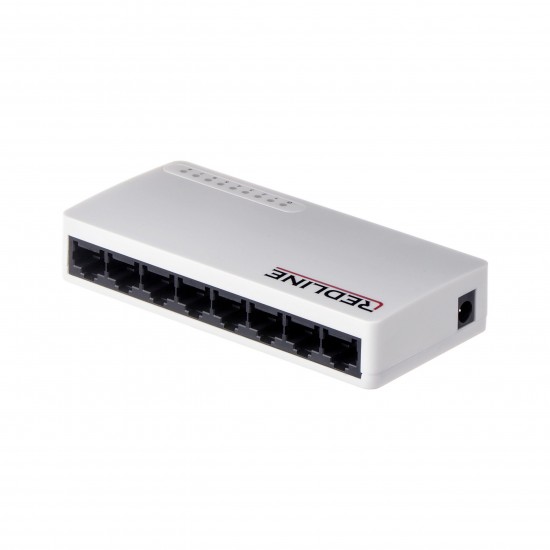

REDLINE 8 Port Network Switch 10/100 RL-S1008M

Description

Model	RL- S1008M
Standards	IEEE802.3 10Base-T Ethernet
	IEEE802.3u 100Base-TX Fast Ethernet
	ANSI/IEEE 802.3 Nway Auto-Negotiation
	IEEE802.3x Flow control
Chipset	IP178G
Frame filtering and forward rate	10Mbps: 14880pps, 100Mbps: 148800pps
Switching capacity	1G
Protocol	CSMA/CD
Transfer method	Store-and-forward
MAC address learning	Automatically learning, automatically Update
Network media(Cable)	10Base-T:2-Pair UTP category 3, 4, 5,5e,6 cable (maximum 100m),
	EIA/TIA-568 100Ù STP(maximum 100m),
	100Base-Tx: UTP category 5, 5e cable (maximum 100m),
	EIA/TIA-568 100Ù STP (maximum 100m)
Environment	Operating temperature: 0°C~40°C(32 F~104 F),
	Storage temperature: -40°C~70°C(-40 F~158 F),
	Operating humidity: 10%~90% non-condensing,
	Storage humidity: 5%~90% non-condensing
