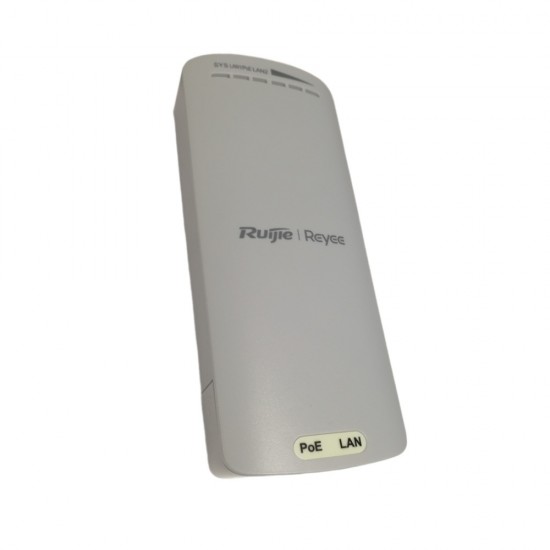

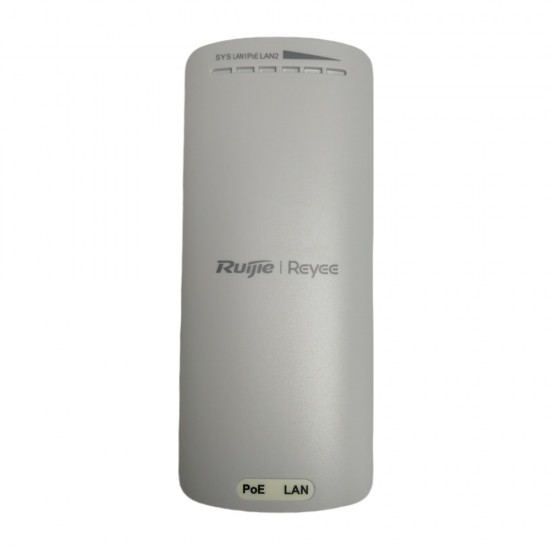

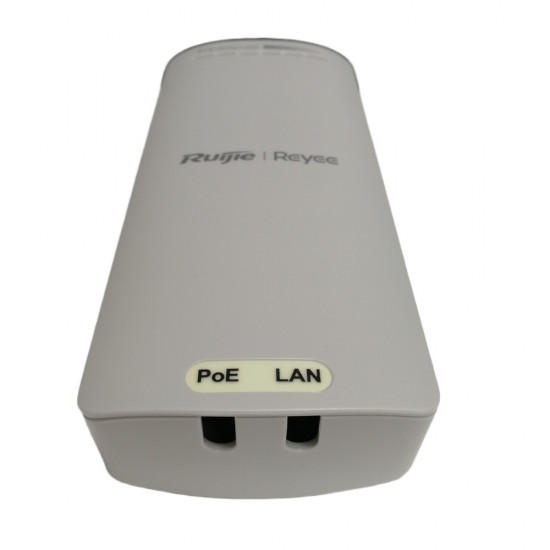

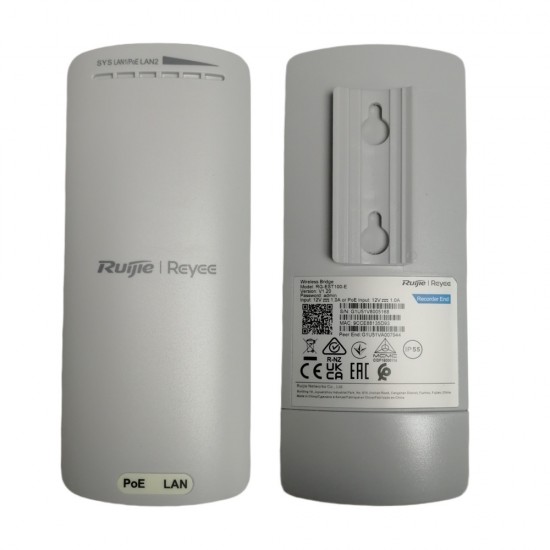

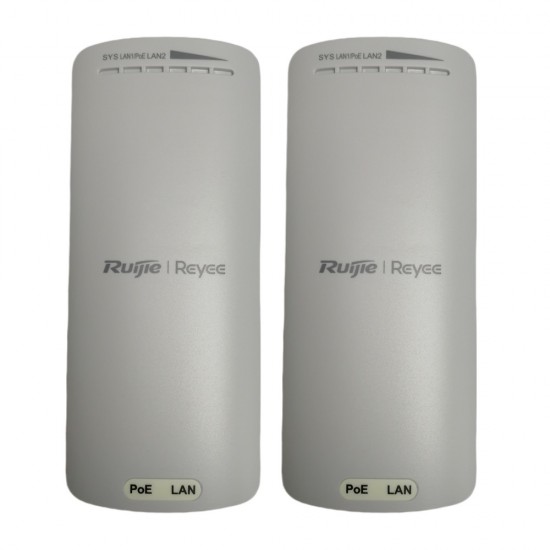

Reyee Ruijie RG-EST100-E V2 Wireless Bridge CPE Kit – 2.4GHz 500m Point-to-Point

The Reyee Ruijie RG-EST100-E V2 Wireless Bridge CPE Kit provides a stable point-to-point wireless connection up to 500 metres, ideal for linking buildings, extending networks or connecting CCTV systems without running cables.

Description

Attachments

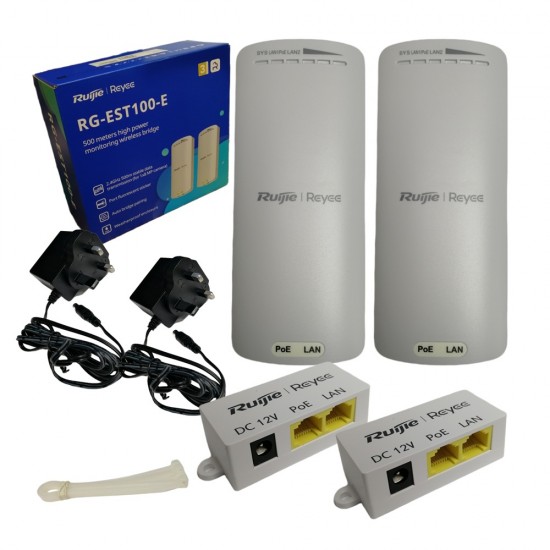

Reyee Wireless Bridge Kit - Pre-Paired - 2.4GHz 500m Range

Features:

RG-EST100-E can easily transmit data from 500m away in real time

Factory-free configuration, without complex alignment

IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment

Supports a maximum of 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m

Visually Intuitive statistics monitoring on Ruijie cloud, easy remote maintenance

Perfect for CCTV in elevators

Key Specification

Radio Design: 2.4 GHz Single-Band Dual-Stream

Operating Band: 802.11b/g/n: 2.400～2.483GHz

Polarization: Horizontal: 70°, Vertical: 70°

Spatial Streams: 2x2, MU-MIMO

Maximum Throughput: Up to 300 Mbps at 2.4 GHz

IP Rating: IP55

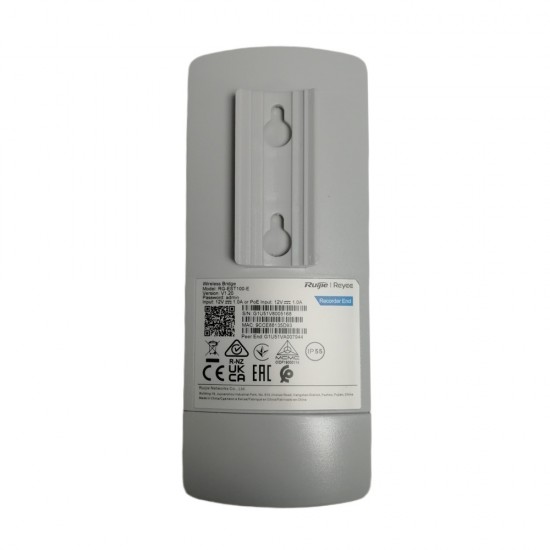

Installation: Wall-mounted/ Pole-mounted

Weight: 0.3 kg

Transmission Protocol: IEEE 802.11b/g/n

Antenna: Directional antennas, 8 dBi

Bridging Distance: 500m (recommended)

Memory/Flash: 64 MB/8 MB

Max. Transmit Power: ≤100 mW(20 dBm) (adjustable)

Lightning Protection: ±6 KV(Common Mode)

Dimensions （D x W x H）: 165.5mm×68.7mm×42mm
