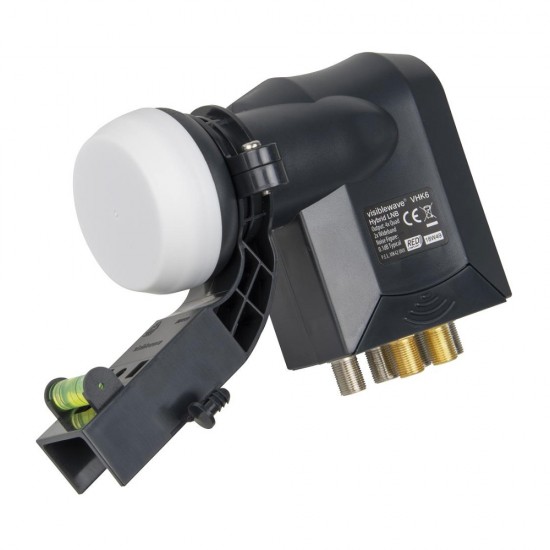

Visiblewave Sky Freesat Hybrid 6 Port LNB

Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB
Visiblewave Sky Freesat Hybrid 6 Port LNB

Please Note : ONLINE ORDERS ONLY. PICK UP FROM OUR STORE 2-3 DAYS

DESCRIPTION of VHK6 – Hybrid LNB 6-output (2 x Wideband, 4 x Quad)
Finished in grey
Supplied with a SkyTM compatible bracket
Built-in spirit level
Used for Sky Q systems where regular free to air / Sky boxes are also in use from the same satellite dish
Wideband Technical Specification
Input Frequency
10.7 ~ 12.75 GHz
Output frequency
Vertical: 290 ~ 2340 MHz
Horizontal: 290 ~ 2340 MHz
L.O. frequencies
10.41 GHz
L.O. Stability
+/-0.5 MHz (max) @ Room Temp.
+/-1 MHz (max) @ -40°C ~ +60°C
L.O. Phase Noise
-50dBc/Hz @ 1kHz (max.)
-75dBc/Hz @ 10kHz (max.)
-100dBc/Hz @ 100kHz (max.)
Noise Figure
0.1 dB (typ.)
Conversion Gain
50 dB (min) / 60 dB (max)
Gain Flatness @ 26MHz
+/-0.5dB (typ.)
Gain Variation
7dB (max.) @ full band
Cross Polar Isolation
25 dB (typ.)
Image Rejection
40 dB (min)
Current Consumption
0.85W (max.) (70mA @ +12V DC)
Power Voltage
9 – 19V DC
Connector Type
75 Om female F-connector
Output Spurious
<-60dBm
Operating Temp.
-40’C ~ +60’C
RED Compliance
EN 303 372-1
Legacy Technical Specification
Input frequency
low band: 10.7 ~ 11.7 GHz
high band: 11.7 ~ 12.75 GHz
Feedhorn – Linear
Optimised for offset dish
Output Frequency
Output 1, 2, 3, 4
low band: 950 ~ 1950 MHz
high band: 1100 ~ 2150 MHz
Output 1,2,3,4 VSWR
(950 – 2150 MHz)
Ratio 2.0:1 (typ.), 2.5:1 (max.)
L.O. frequencies
9.75 / 10.6 GHz
L.O. Stability
0.5 ~ 1.0 MHz
L.O. Phase Noise
-55dBc/Hz @ 1kHz (max.)
-75dBc/Hz @ 10kHz (max.)
-90dBc/Hz @ 100kHz (max.)
Conversion Gain
56 ~ 63 dB @ 25ºC
54 ~ 60 dB @ -40ºC ~ 60ºC
Gain Flatness
Over Full Band
3 dB P-P (typ.), 5 dB P-P (typ.)
Gain Flatness @ 26MHz
@ 300MHz
+/- 0.5 dB P-P (typ.)
+/- 4 dB P-P (typ.)
1.7GHz
-50 dB (typ.) -47 dB (max.)
Noise Figure
0.3 dB (typ.), 1.0 dB (max.)
Cross Polar Isolation
18 dB (min.), 20 dB (typ.)
Image Rejection
37 dB (min), 40 dB (typ.)
Current Consumption
120mA (typ.), 140mA (max.)
Operating Voltage &
Band Switching
Vertical 11.5 – 14.5 VDC
Horizontal 15.5 – 19 VDC
Low-Band 0 KHz
High-Band 18 – 26 KHz
Connector Type
75 Om female F-connector
Operating Temp.
-40’C ~ +60’C
RED Compliance
EN 303 372-1
