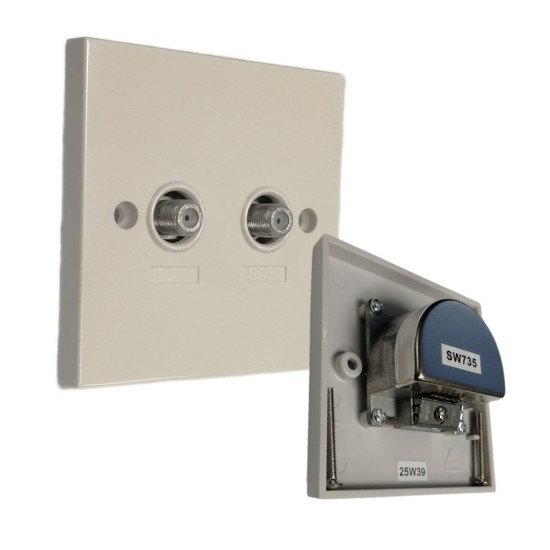

Twin F-Type Wall Plate (Screened) SW735

Description of a Twin F-Type Wall Plate (Screened) SW735

Great for twin tuner satellite receivers such as the Amiko Alien 2 and VU+ Duo

Inputs: 2

Connection: Saddle & Clamp

Outputs: 2

2x F-Type Connector

Manufacturer: Antiference UK

Model: SW735

Key Technical Specifications

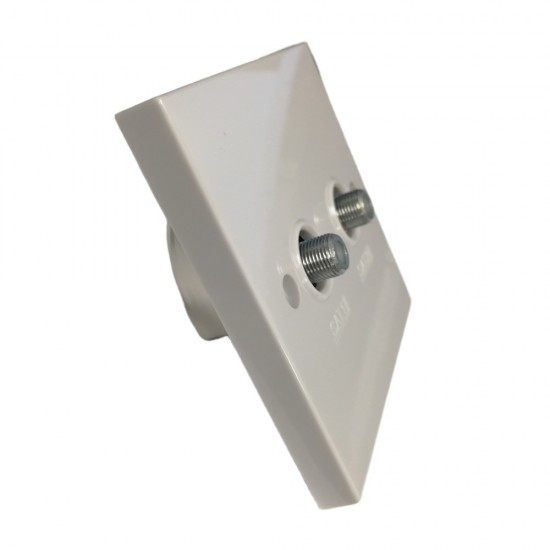

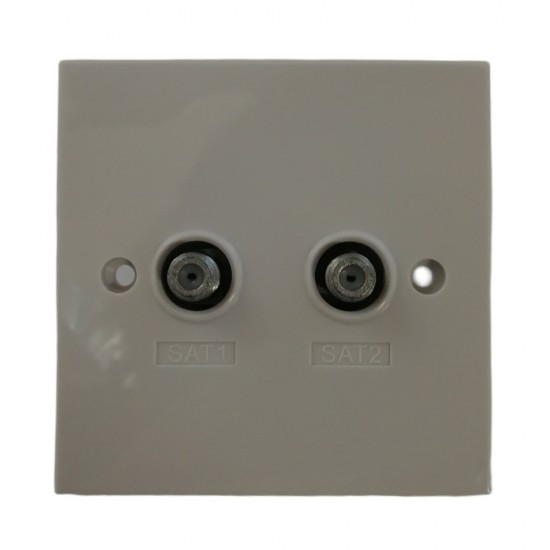

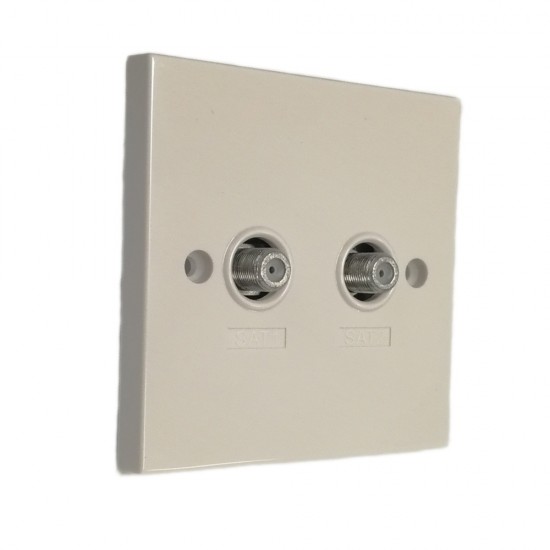

Outputs: Two female F-Type screw-on connectors on the front face for easy connection to your receiver.

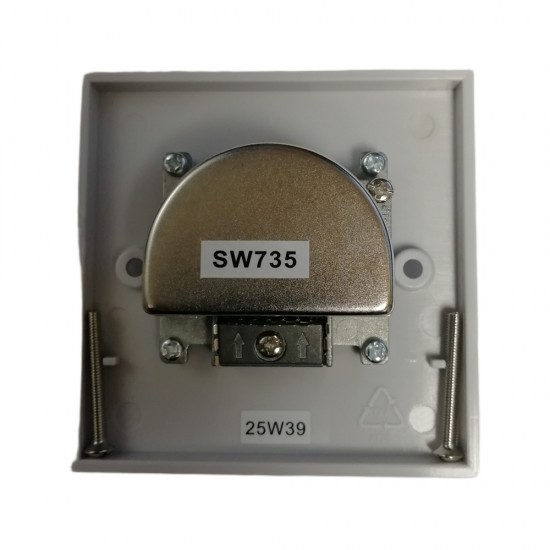

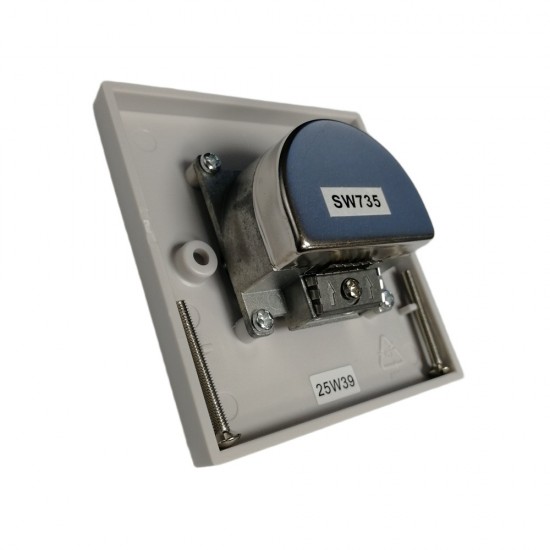

Inputs: Two internal connections on the rear using a saddle & clamp mechanism, which ensures a secure and low-loss attachment for incoming coaxial cables.

Screening: Fully screened for high impulse noise immunity, protecting your signal from external electrical interference.

Compatibility: Non-isolated design, making it compatible with RemoteLink systems. It supports Satellite (Sky/Freesat), Terrestrial (VHF/UHF), and Cable (NTL/Virgin) signals.

Installation: Standard white plastic plate (approx. 85mm x 85mm) that fits standard UK/Ireland single-gang back boxes.

Installation Overview

To install the SW735, follow these general steps:

Prepare the Coax Cable: Strip about 1.5cm of the outer PVC jacket to expose the braiding, then fold the braiding back over the jacket.

Expose the Core: Remove about 0.5cm of the inner insulation to reveal the center copper conductor.

Rear Connection: Loosen the saddle screws on the back of the plate. Insert the center conductor into the pillar terminal and tighten. Place the folded braiding under the clamp and tighten to secure the ground connection.

Final Mounting: Ensure the braid is not touching the center core (to avoid short circuits) and screw the plate into the wall back box.
