Please Note : ONLINE ORDERS ONLY. PICK UP FROM OUR STORE 2-3 DAYS

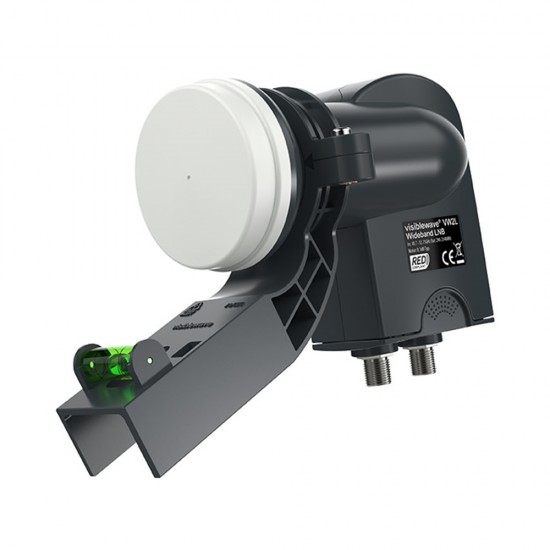

DESCRIPTION of VW2L Wideband LNB – 2 Output
Finished in grey
Supplied with a Sky compatible bracket
Built-in spirit level
Technical Specification
Input Frequency
10.7 ~ 12.75 GHz
Output frequency
Vertical: 290 ~ 2340 MHz
Horizontal: 290 ~ 2340 MHz
L.O. frequencies
10.41 GHz
L.O. Stability
+/-0.5 MHz (max) @ Room Temp.
+/-1 MHz (max) @ -40°C ~ +60°C
L.O. Phase Noise
-50dBc/Hz @ 1kHz (max.)
-75dBc/Hz @ 10kHz (max.)
-100dBc/Hz @ 100kHz (max.)
Noise Figure
0.1 dB (typ.)
Conversion Gain
50 dB (min) / 60 dB (max)
Gain Flatness @ 26MHz
+/-0.5dB (typ.)
Gain Variation
7dB (max.) @ full band
Cross Polar Isolation
25 dB (typ.)
Image Rejection
40 dB (min)
Current Consumption
0.85W (max.) (70mA @ +12V DC)
Power Voltage
9 – 19V DC
Connector Type
75 Om  female F-connector
Output Spurious
<-60dBm
Operating Temp.
-40’C ~ +60’C
RED Compliance
EN 303 372-1
