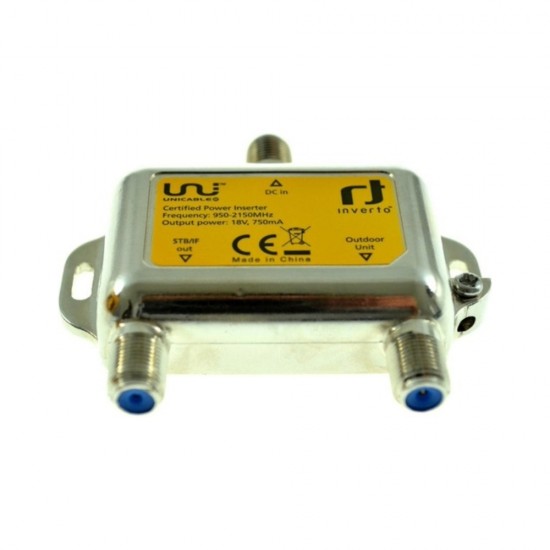

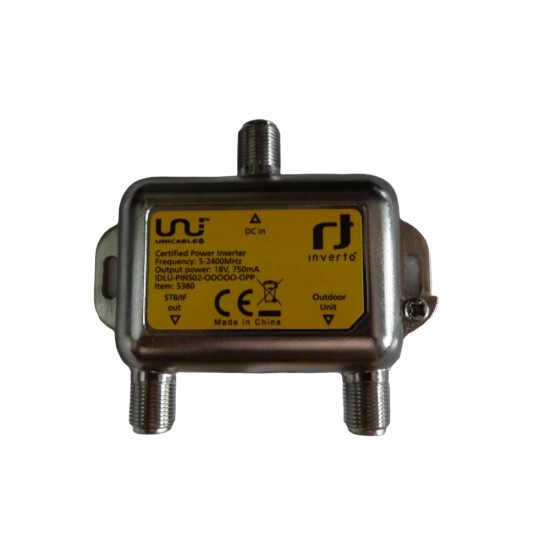

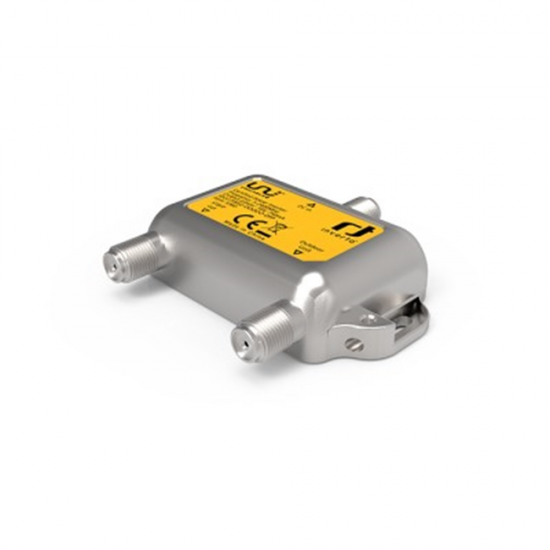

Inverto Unicable II Power Inserter

Please Note : ONLINE ORDERS ONLY. PICK UP FROM OUR STORE 2-3 DAYS

This LNB is part of our innovative and award-winning Unicable LNB (single-cable) series. It was specially developed for the European DTH markets and offers optimized reception characteristics. This LNB allows you to connect a maximum of 4 (Unicable-compatible) set top boxes with two cables (or a maximum of four set top boxes with one cable). The LNB comes with a dual distributor * (optional), which ensures flexible signal distribution within a household. The LNB is suitable for HD transmissions and provides excellent noise figure values. Designed to the highest standards and manufactured to the highest quality standards, this LNB is the ideal solution for Europe-wide satellite broadcasting.

Key Features:

Low phase noise, DVB-S2 (HDTV) compatible

Low noise figure

Low energy consumption

Very high cross polarization isolation

Very high frequency stability

2 legacy outputs

Technical specifications:

Low Band Input Frequency Range 10.7 ~ 11.7 GHz

LO Frequency 9.75 GHz

High Band Input Frequency Range 11.7 ~ 12.75 GHz

LO Frequency 10.6 C + Hz

LO Initial Accuracy +/- 1.0 MHz

LO temperature drift +/- 2.5 MHz

LO Phase Noise @ 10KHz -90 dBc / Hz max.

SCR conversion gain 57 dB min.

Legacy Conversion Gain 55 dB Min.

Gain variation +/- 0.75 dB / 27 MHz

Image Rejection 40 dB min.

1 dB Compression Point (O / P) 0.0 dBm min.

Cross-pole isolation 20 dB min.

O / P VSWR 2.5: 1

Output Impedance 75 Ohms (F-type)

IF channel bandwidth 60 MHz

Output IF Channel 1 (SCR0) 1210 MHz

Output IF Channel 2 (SCR1) 1420 MHz

Output IF Channel 3 (SCR2) 1680 MHz

Output IF Channel 4 (SCR3) 2040 MHz

Channel isolation 20 dB Min.

Legacy ports 2

SCR's Control Signals> DiSEqC command extension based on EN-50494

Legacy Switch Voltage Control <14.2 (V),> 15 (H) Volts

Legacy 22k sensitivity 220 mV [min.]

DC Power 250mA@13.5V

Working Temperature- 30 ° C ~ + 60 ° C

Weight 350g
