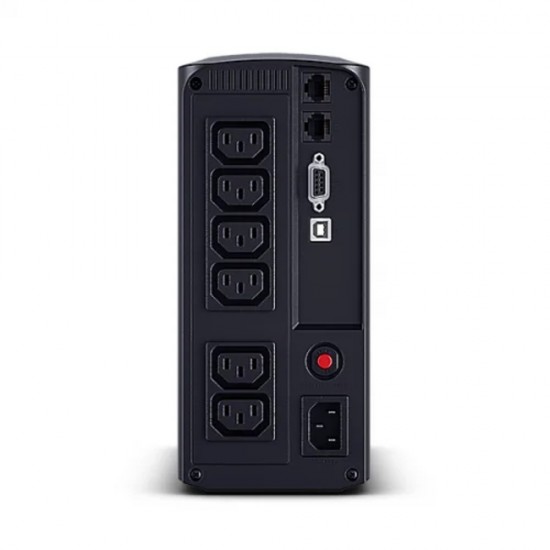

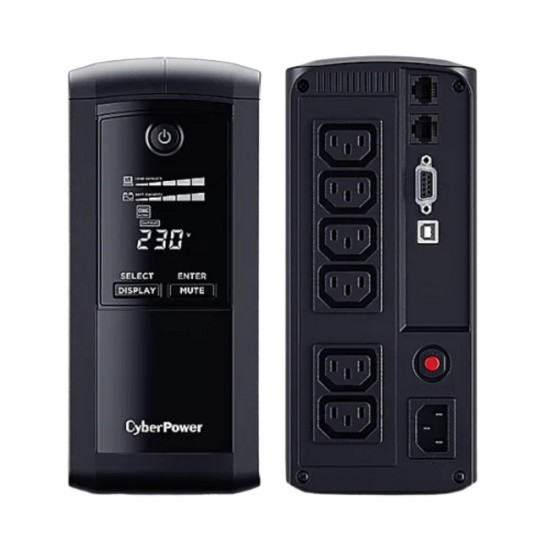

CyberPower VP700EILCD Desktop UPS 700VA / 390W (6 x IEC)

CyberPower VP700EILCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.

Line-interactive UPS Topology

Generator Compatible

Automatic Voltage Regulation (AVR)

High-speed Ethernet Data Transmission

Surge and Spike Protection

PowerPanel Management Software

Energy Saving Technology

Simulated Sine Wave Output

LCD Status Display

USB Connectivity Port

Serial Connectivity Port

Phase

Single Phase

Form Factor

Tower

UPS Topology

Line-interactive

Energy Saving Technology

GreenPower UPS™ Bypass Technology

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

230 ± 10%

Input Voltage Range ( Vac )

167 ~ 295

Input Frequency ( Hz )

50 ± 5

60 ± 5

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

3.04

Input Connector Type

IEC C14

Capacity (VA)

700

Capacity (Watts)

390

On Battery Waveform

Simulated Sine Wave

On Battery Voltage(s) ( Vac )

230 ± 10 %

On Battery Frequency ( Hz )

50 ± 1%

60 ± 1%

Automatic Voltage Regulation (AVR)

Single Boost, Single Buck

Overload Protection

Circuit Breaker

Outlet(s) - Total

6

Outlet Type

IEC C13 x 6

Outlet(s) - Battery & Surge Protected

6

Typical Transfer Time ( ms )

4

Runtime at Half Load ( min )

10

Runtime at Full Load ( min )

1

Typical Recharge Time ( Hours )

8

Start On Battery

Yes

User-replaceable

Yes - Qualified Personnel Only

Battery Type

Sealed Lead-acid

Surge Suppression ( Joules )

450

EMI/RFI Filtration

Yes

Phone/Network Protection RJ11/RJ45 (Combo)

1-in, 1-out

LCD Panel

Yes

LCD Information Display

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information

LCD Setting & Control

Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning

LED Indicators

Power On

HID Compliant USB Port(s)

1

Audible Alarms

Battery Mode, Low Battery, Overload, UPS Fault

Management Cable ( pcs )

Power Cord x1, USB Cable x1

Ethernet Data Transmission Speed

Up to 1Gbps

Power Management Software

PowerPanel Personal (Recommended)

Enclosure Construction

Plastic

Color

Black

Dimensions (WxHxD) (in.)

3.9 x 8.9 x 10.2

Dimensions (WxHxD) (mm.)

100 x 227 x 260

Weight (lbs.)

11.33

Weight (kg.)

5.14

Dimensions (WxHxD) (in.)

11.81 x 13.19 x 5.63

Dimensions (WxHxD) (mm.)

300* x 335 x 143

Weight (lbs.)

12.7

Weight (kg.)

5.76

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 90

Operating Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)

-4 ~ 122

Storage Temperature (°C)

-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 90

Storage Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Online Thermal Dissipation ( BTU/hr )

9.5

Audible Noise at 1.0M from Surface of Unit ( dBA )

40

Certifications

CE, EAC

RoHS

Yes

Product Warranty Period (Year)2

Battery Warranty Period (Year)2
