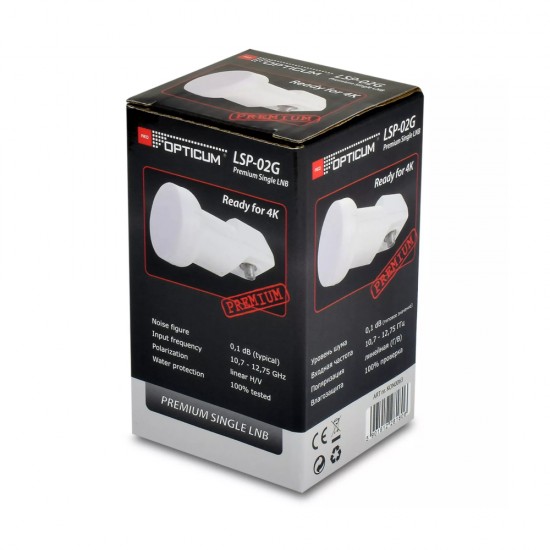

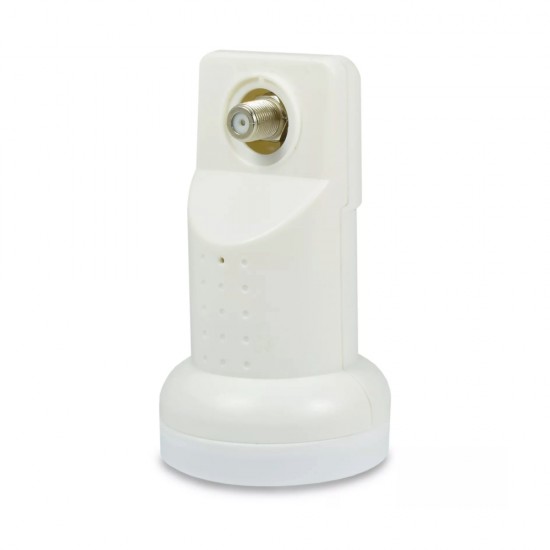

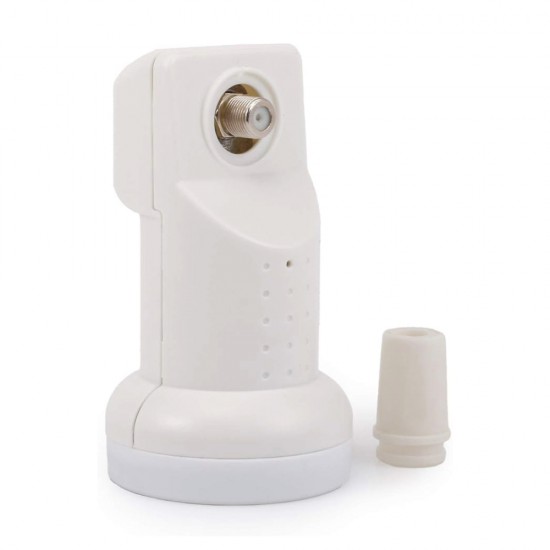

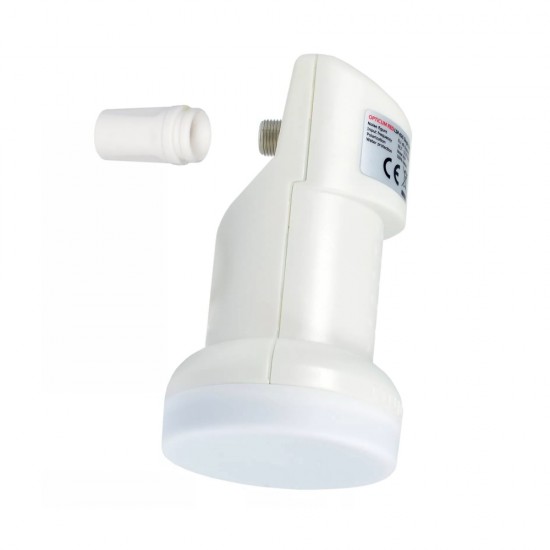

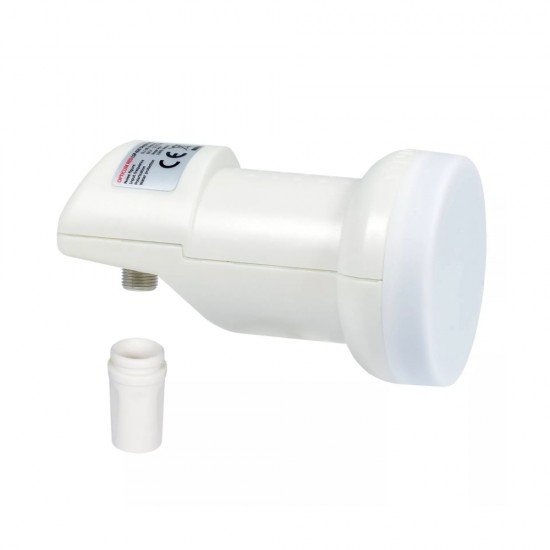

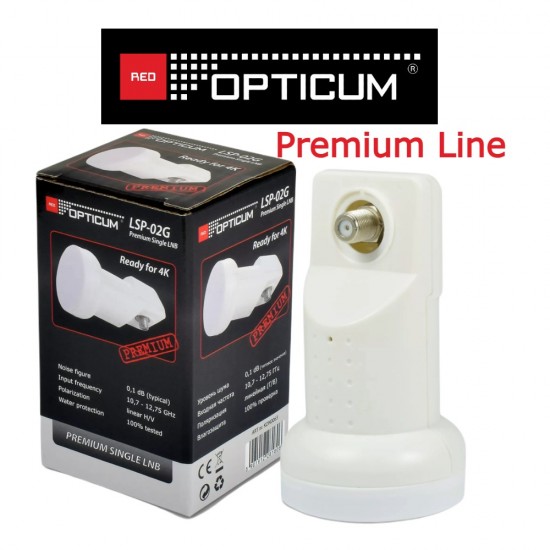

SINGLE LNB OPTICUM LSP-02G UNIVERSAL ULTRA LOW NOISE FIGURE 0.1db HIGH GAIN

DESCRIPTION SINGLE LNB Opticum LSP-02G UNIVERSAL ULTRA LOW NOISE FIGURE 0.1db HIGH GAIN

Universal Single LNB used for Universal Satellite Dishes, Low noise 0.1dB and great reception qualities.

DVB-S2 Compliant LNB, HD-TV, SD-TV, 3D-TV

40mm fitting

Compatibile with UK & European Ku TV satellites, Including FreeSat - SKY - Cyfra+ - NTV - Polsat

Low Power Consumption

Very High Frequency Stability, Very High Cross Pol Perfomance

Input Frequency: Low Band: 10.7-11.7 GHz, High Band: 11.7-12.75 GHz

Output Frequency: Low Band: 950-1950 MHz, High Band: 1100-2150 MHz

Standing Wave Ratio (VSWR): 2.5:1 (max.)

Local Generator Stability: +/- 1 MHz (max.) (25°C)

Phase Noise: -55 dBc/Hz (1kHz), -80 dBc/Hz (10kHz), -100 dBc/Hz (100kHz)

Gain: 58 dB (typ.)

Gain Deviation: 5 dB (typ.) +/- 0.5 dB (typ.) / 26 MHz

Noise Power Ratio: Low Band: 0.3 dB (typ.), High Band: 0.3 dB (typ.)

Polarization Permeability: 20 dB (typ.)

Image Frequency Rejection: 40 dB (min.)

Operating voltage: vertical polarization: 11.5-14 V, horizontal polarization: 16-19 V

Switching range: wave lower band: 0 Hz, upper band: 22+/-4 Hz

Local Generator Frequency: Lower Band: 9.75 GHz Upper Band: 10.6 GHz

Current consumption: 120 mA (max.)

Output Type: 75 ? Female

Operating temperature: -40°C +60°C
