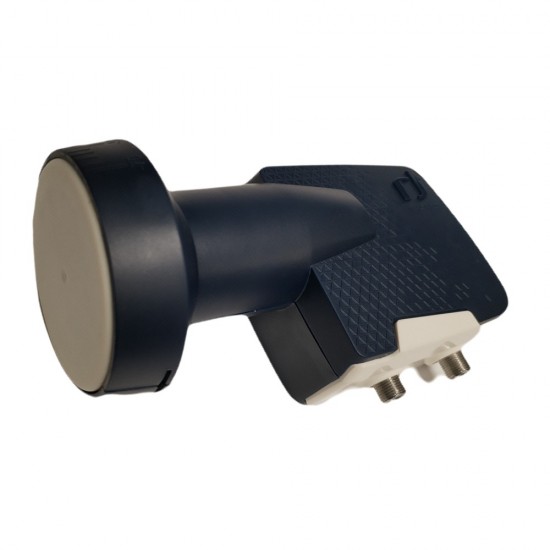

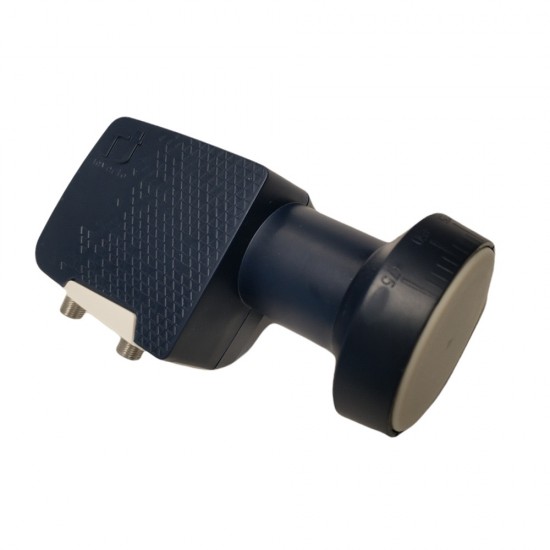

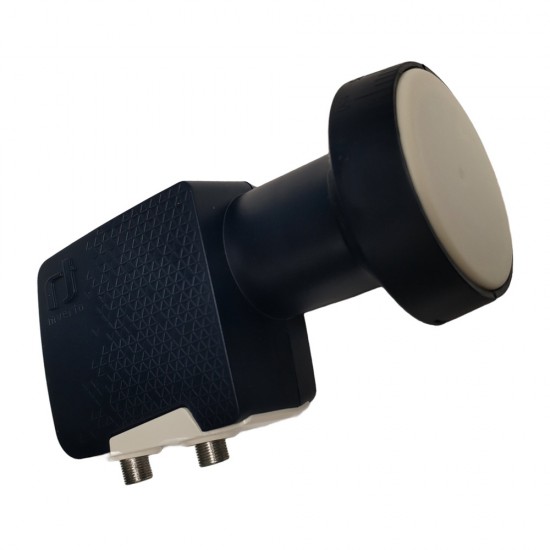

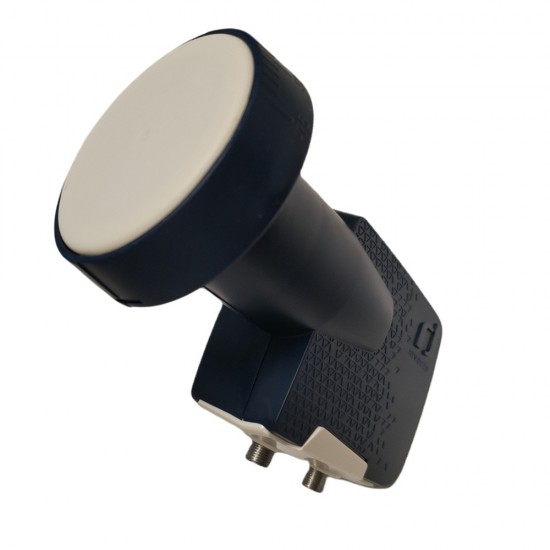

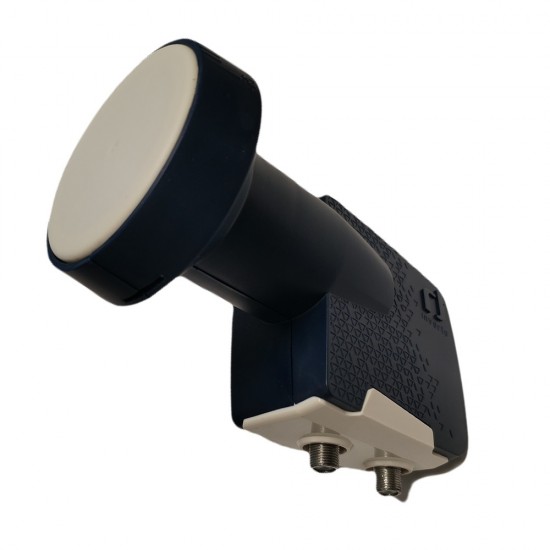

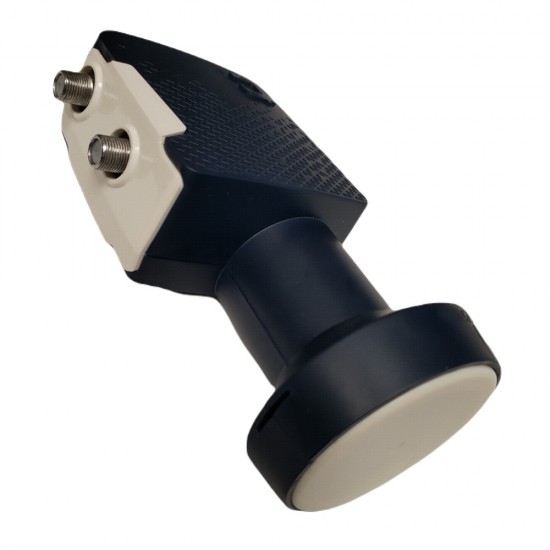

Twin LNB Inverto Black Premium HIGH GAIN, FREESAT, ASTRA, HOTBIRD

Description Inverto Black Premium Twin PLL LNB

Specifically designed and selected to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV and radio from a single satellite and its distribution to two single tuner Set-top boxes (or 1 twin tuner PVR). The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for demanding customers of DTH operators and satellite broadcast reception across the world.

Main Features:

Low Phase Noise, DVB-S2 (HD and UHD) compliant

Very low Noise Figure

Low power consumption

High Cross Polarization Isolation

High Frequency stability

Technical specifications

Input frequency range 10.7 GHz ~ 12.75 GHz

Output frequency range 950 MHz ~ 2150 MHz

Low band LO frequency 9.75 GHz

High band LO frequency 10.6 GHz

Noise figure 0.2 dB typ. (0.7 dB max.)

LO frequency accuracy @ 25° C ±500 kHz max.

LO temperature drift ±1.0 MHz max.

LO phase noise @ 10 kHz -80 dBc/Hz max.

Conversion gain 55 dB min.

Gain ripple (over 26 MHz bandwidth) ±0.6 dB

Gain variation (over full band) ±3 dB

Image rejection 40 dB min.

3th order intermodulation - ICP3 10 dBm min.

1 dB compression point (@ output) 0 dBm min.

Cross polarization isolation 22 dB typ.

Control signal Ca (V) 11.0 V ~ 14.0 V

Control signal Cb (H) 16.0 V ~ 20.0 V

Control signal Cc (band switching) 22 kHz ±4 kHz, 0.4 V ~ 0.8 V pp

Output VSWR 2.5 : 1

In band spurious level -60 dBm max.

Current consumption 120 mA max. @ 11 VDC ~ 20 VDC

Operating temperature -35 °C ~ +60 °C

Output impedance 75 Ω

Output connector type F-type (female)

Dish F/D ratio 0.6

Weight 218 g

Logistical info

Packaging dimensions (W x D x H) 15.5 cm x 9.1 cm x 7.6 cm

Packaging weight 0.278 kg

Quantity per Carton 60 pcs

Carton dimensions (W x D x H) 64.0 cm x 47.5 cm x 25.0 cm

Carton weight 17.9 kg

Quantity per pallet 32 ctns/plt
