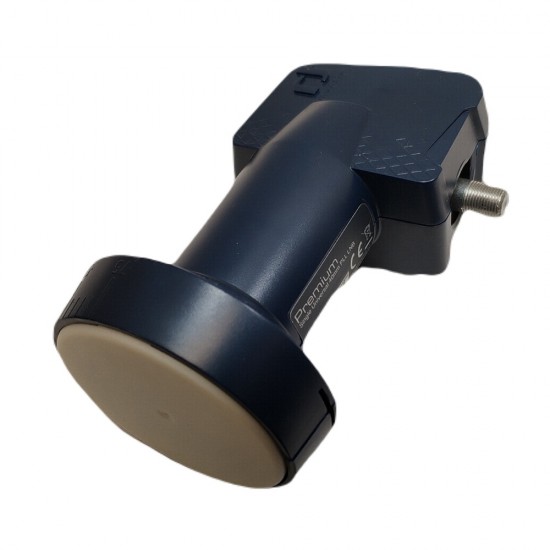

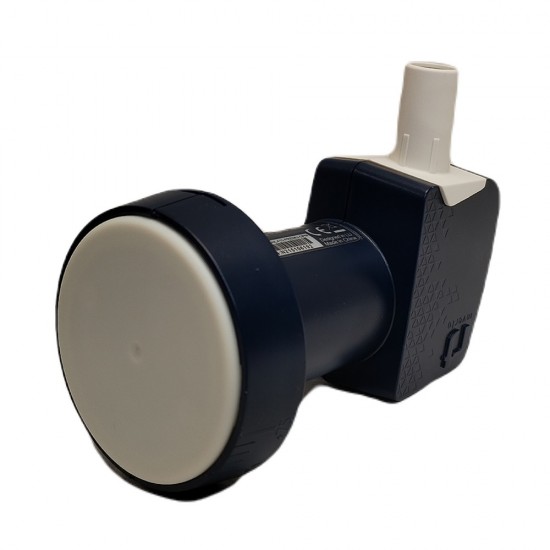

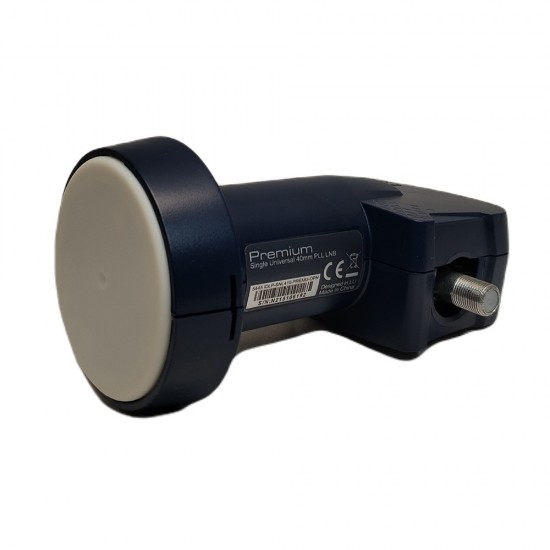

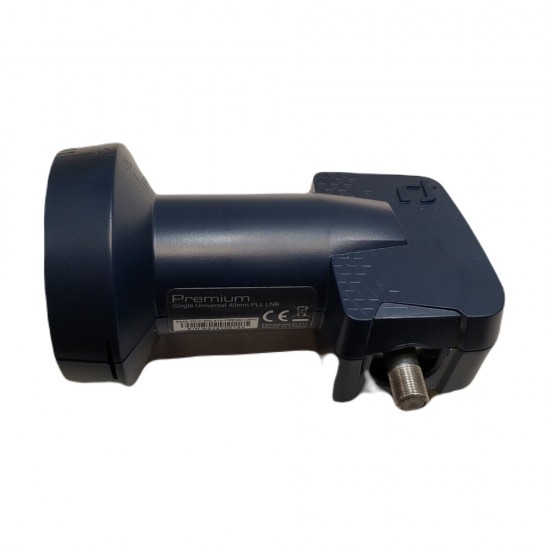

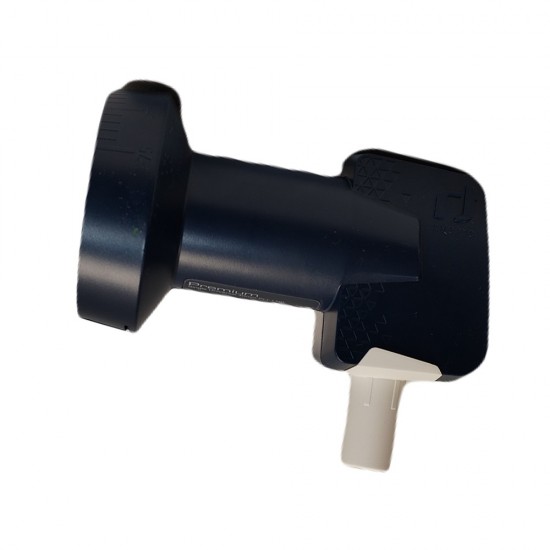

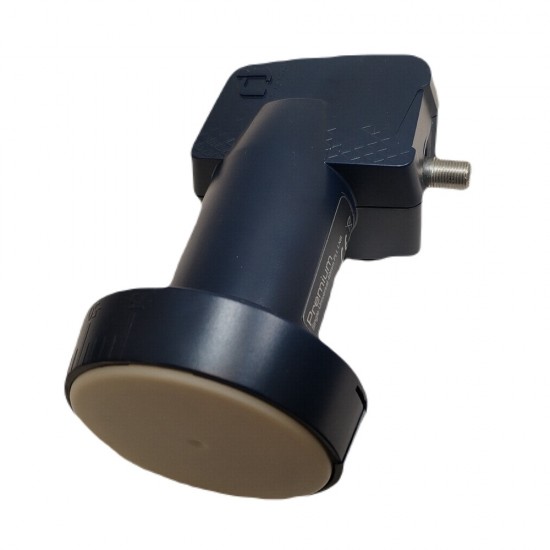

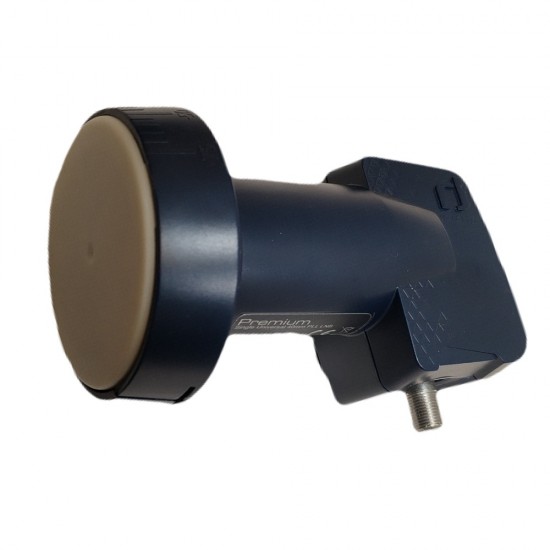

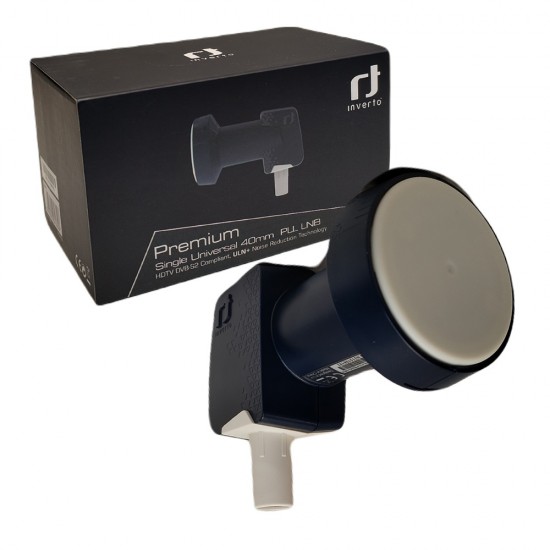

Single PLL LNB Inverto Black Premium HD HIGH GAIN FREESAT ASTRA HOTBIRD

Single PLL LNB Inverto Black Premium  HD HIGH GAIN FREESAT ASTRA HOTBIRD

This LNB is a high performance product featuring the lowest noise figure available to address the need for superior reception under the edges of the satellite footprint skirt. Thanks to its novel front-end architecture and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance. The combination of higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering spurious. All in all, this LNB provides a leap in the overall reception performance compared with standard LNBs. This LNB enables the reception of signals from one satellite, its distribution to a single tuner Set-top box and is ready for High Definition transmissions. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.

Main Features:

Superior Phase Noise performance, DVB-S2 (HDTV) compliant

Excellent Cross Polarization Isolation

Very Low Spurious Levels

Superior Noise Figure

Higher Conversion Gain

Ultimate Reliability

Technical specifications

Low band input frequency range 10.7 GHz ~ 11.7 GHz

Low band output frequency range 950 MHz ~ 1950 MHz

Low band LO frequency 9.75 GHz

High band input frequency range 11.7 GHz ~ 12.75 GHz

High band output frequency range 1100 ~ 2150 MHz

High band LO frequency 10.6 GHz

Noise figure 0.2 dB typ. (0.7 dB Max.)

LO temperature drift ± 3.0 MHz max.

LO initial accuracy @ 25 °C  ± 1.0 MHz max.

LO phase noise @ 10 kHz -90 dBc/Hz

Conversion gain 60 dB min.

Gain ripple (over 26 MHz bandwidth) ± 0.75 dB

Gain variation (over full band) ± 4 dB max.

Image rejection 40 dB min.

1 dB compression point (@ output) 0.0 dBm min.

Cross talk 22 dB min.

Control signal Ca (V) 11.0 V ~ 14.0 V

Control signal Cb (H) 16.0 V ~ 20.0 V

Control signal Cc (band switching) 22 kHz ± 4 kHz, 0.4V – 0.8V pp

Output VSWR 2.0 : 1

In band spurious level -50 dBm max.

Current consumption 120 mA max. (11 VDC ~ 20 VDC)

Operating temperature -30 °C ~ +60 °C

Output impedance 75 Ω (F-type)

Output connector type F-Type (female)

Weight 151 g
