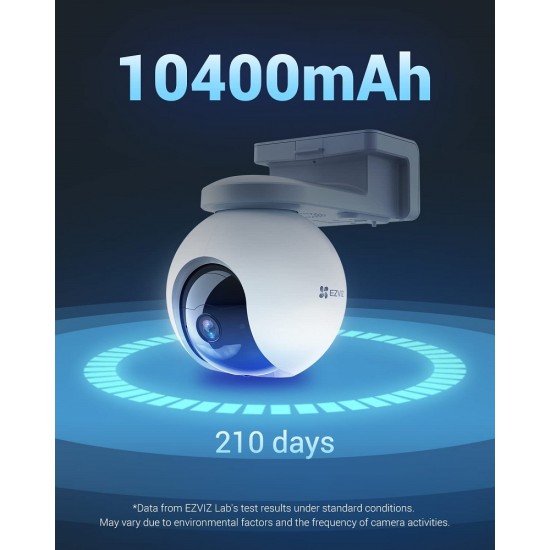

EZVIZ HB8 WiFi Battery Powered Pan & Tilt Outdoor Camera 2K+ 4MP

ONLINE ORDES ONLY. PICK UP FROM SHOP 2-3 DAYS

Specifications

Model CS-HB8 (4MP)

Camera

Image Sensor 1/3” 4-Megapixel Progressive Scan SMOS Sensor

Minimum Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)

Shutter Speed Self-adaptive shutter

Lens 4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)

PT Angle Pan: 340°, Tilt: 65°

Day & Night IR-Cut filter with auto-switching

DNR 3D DNR

Night Vision Up to 49 ft / 15 m

Video & Audio

Max. Resolution 2560 × 1440

Frame Rate 15fps. Self-Adaptive during Network Transmission

Video Compression H.265 / H.264

Video Bit Rate Ultra-HD; HD; Standard. Adaptive Bit Rate.

Audio Bit Rate Self-Adaptive

Max. Bitrate 2 Mbps

Network

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20 MHz

Security 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

Wi-Fi Pairing AP pairing

Protocol EZVIZ cloud proprietary protocol

Interface Protocol EZVIZ cloud proprietary protocol

Minimum Network Requirement 4Mbps

Function

Detection Smart Human Motion Detection

Two-way Talk Supports

General Function Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage Build-In 32GB eMMC Storage

Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)

General

Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)

IP Grade Weatherproof Design

Power Consumption Max. 10W

Product Dimensions 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)

Packaging Dimensions 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)

Weight Net: 803 g (28.32 oz) With package: 1060 g (37.39 oz)

Battery

Battery Capacity 10400 mAh

Power Supply DC 5V / 2A

In the box

In the box - HB8 2K⁺ Camera

- Drilling Template

- USB Cable

- Screw Kit

- Quick Installation Guide

- Regulatory Information

- Quick Start Guide

Certifications

Certifications CE / FCC / WEEE / RoHS / REACH / UL
