Please Note : ONLINE ORDERS ONLY. PICK UP FROM OUR STORE 2-3 DAYS

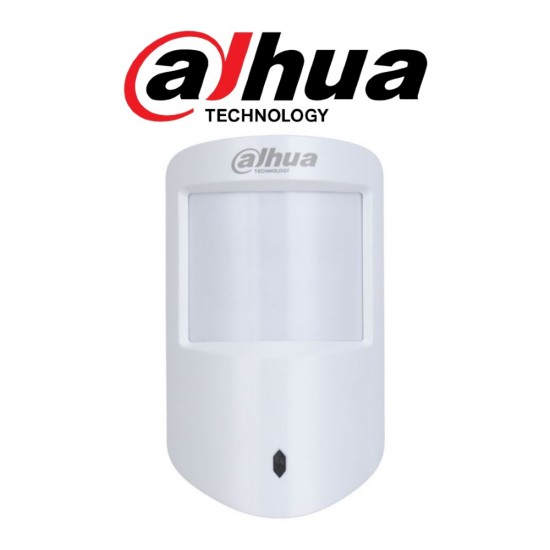

Description Dahua Wireless Alarm PIR

Wireless input expander
> Six types of alarm: intrusion, medical, fire, emergency, gas, and tamper.
> NC and NO are available for alarm inputs (NO by default).
> Signal strength detection.
> Low battery alarm.
> Temperature monitoring.
> Frequency hopping function and two-way communication technology ensure communication stability.
> Cloud update and automatic recovery from update failure
Specifications:
Port
Indicator Light
1 × green alarm indicator
Button
1 × power button
Function
Tamper Alarm
Yes
Remote Upgrade
Cloud update
Search
Signal strength detection
Test Mode
Yes
Low Battery Alarm
Yes
Wireless
Carrier Frequency
868.0 MHz–868.6 MHz
Communication Distance
Up to 1,600 m (5,249.34 ft) in an open space
Communication Mechanism
Two-way
Encryption Mode
AES128
Frequency Hopping
Yes
General
Power Supply
CR123A battery
Power Consumption
Max. 120 mW
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity
10%–90% (RH).
Dimensions
104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)
Package Dimensions
135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H)
Installation Mode
Wall mount
Net Weight
100 g (0.22 lb)
Gross Weight
170 g (0.37 lb)
Certifications
CE
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-2-2:2017
EN 50131-6:2017
EN 50131-5-3:2017
Security Grade 2
Environmental Class II
Battery Life
4 years
Casing
PC + ABS
Temperature
Measuring Range
–15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Measuring Precision
± 1 °C (± 33.8 °F)
Resolution
1 °C (33.8 °F)
Specification
Detection Mode
PIR
Sensor
Dual-element low-noise PIR sensor
Detection Range
12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)
Detection Speed
0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity Level
≤ 18 kg (39.68 lb)
White Light Resistance Level
2000 lx
Two-way Digital Temperature Compensation
Yes, no attenuation of detection distance in high temperature
Sensitivity
3 levels adjustable

Write a review

Note: HTML is not translated!
BadGood
No video available.
  • Stock: In Stock
  • Model: ARD1233-W2(868)
  • Weight: 0.55kg
  • Dimensions: 0.21cm x 0.20cm x 0.10cm
  • SKU: ARD1233-W2(868)
1Dahua
19%s samples sold 0
0 reviews-Write a review
56.97€
Ex Tax: 46.32€
Add to Cart
Buy NowAsk Question
Add to Wish ListCompare this Product
Tags:Dahua, Wireless, Alarm, PIR,
