Please Note : ONLINE ORDERS ONLY. PICK UP FROM OUR STORE 2-3 DAYS

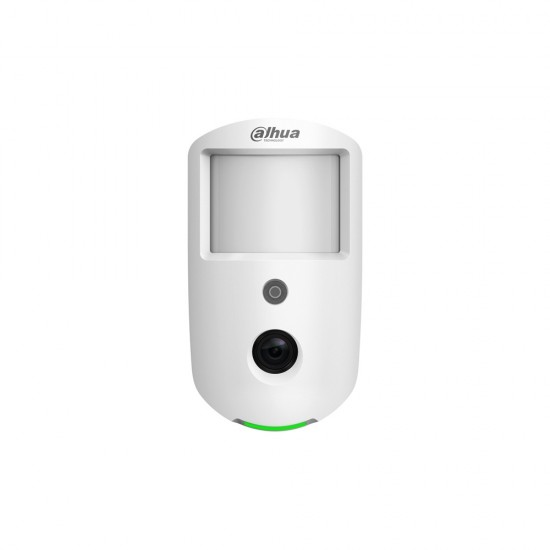

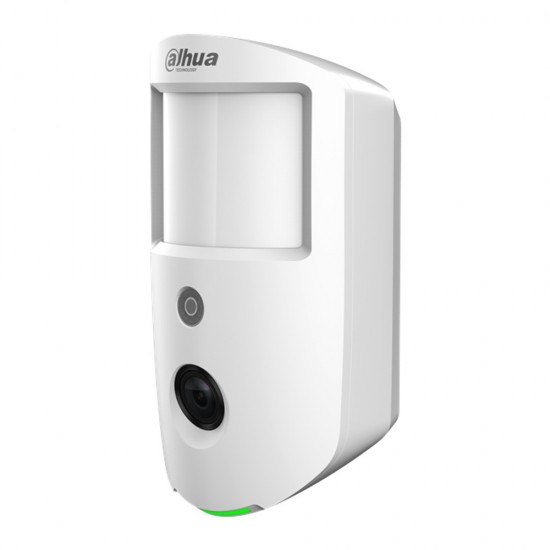

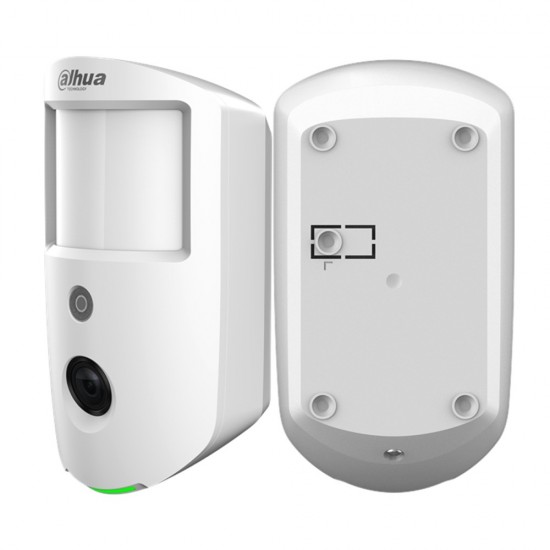

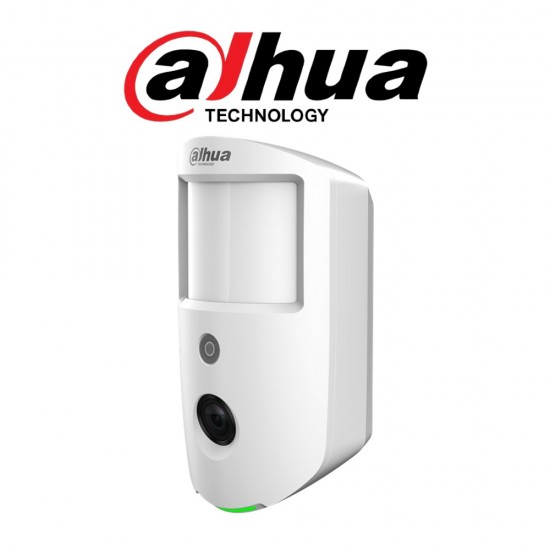

Description Dahua Wireless Alarm PIR Camera

Wireless PIR-Camera
> Maximum resolution 1600*1200.
> Based on the RF-HD image transmission technology, transmission of 6 HD images with resolution of 1600*1200 needs up to 10 seconds.
> One-week cloud cache for videos and images.
> Temperature monitoring.
> Offers frequency hopping and two-way communication technology,ensuring the stability of communication.
> Cloud update and automatic recovery from update failure.
Specifications:
Video
Field of View
88° (H);68° (V)
Image Type
JPEG
Resolution
1600 × 1200; 1280 × 960; 640 × 480; 320 × 240
Frame Rate
2
Illumination Mode
Infrared Light
Illumination Range
12 m (39.37 ft)
Day/Night Switch
Color/Black & White
Function
Indicator Light
1 × green alarm indicator
Button
1 × power switch
Remote Update
Cloud update
Low Battery Detection
Yes
Battery Level Display
Yes
Tamper
Tamper alarm
Signal Strength
RF Signal test
RF-HD signal test
Technical
Detection Mode
PIR
Sensitivity
3 levels adjustable
Detection Range
12 m (39.37 ft) (86°) with installation height of 2.2 m (7.22 ft)
Detection Speed
0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity Level
≤18 kg (39.68 lb)
White Light Resistance Level
2000 lux
Two-way Digital Temperature Compensation
Yes
Scenario
Indoor
Operating Current
65 μA
Alarm Current
Day: 170 mA (Avg); 800 mA (Max)
Night: 230 mA (Avg); 2.8 A (Max)
Wireless
Carrier Frequency
RF:868.0 MHz–868.6 MHz
RF-HD:2.4GHz
Communication Distance
RF:Up to 1,600 m (5,249.34 ft) in an open space
RF-HD:Up to 300 m (984.25 ft) in an open space
Communication Mechanism
Two-way
Frequency Hopping
Yes
Encryption Mode
AES128
General
Power Supply
CR123A*3
Battery Life
4 years (if triggered twice a week with a battery efficiency of 70%)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity
10%–90% (RH)
Product Dimensions
71.0 mm × 53.2 mm × 127.6 mm (2.80" × 2.09" × 5.02")
Packaging Dimensions
121.0 mm × 65.0 mm × 170.0 mm (4.76" × 2.56" × 6.69")
Net Weight
202 g (0.45 lb)
Gross Weight
333 g (0.73 lb)
Installation
Wall mount
Casing
PC + ABS
Certifications
CE
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
EN 50131-2-2:2021
EN 50131-6:2017
EN 50131-5-3:2017
EN 50130-4:2011 + A1:2014(+)
Security Grade 2
Environmental Class II
