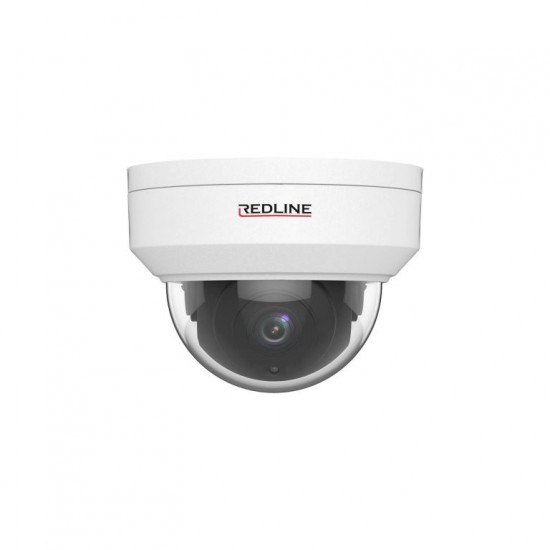

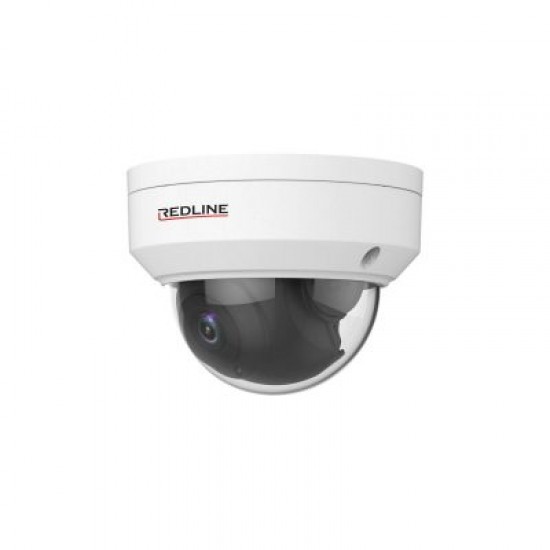

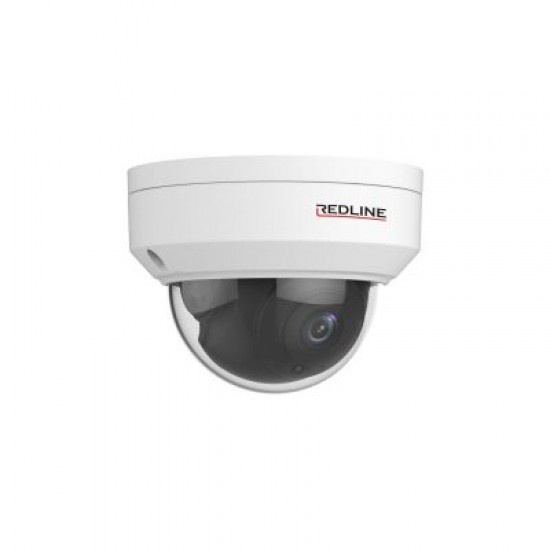

CCTV Redline IP Dome outdoor Camera 8MP IPC-865U Metal Dome White

Description

CCTV Redline IP Dome outdoor Camera 8MP IPC-865U Metal Dome White

Model Name IPC-865U

case Metal-Dome

Camera

Sensor 1/3", 8.0 megapixel, progressive scan, CMOS

Lens 4.0mm@F2.1

DORI Distance Lens (mm) 4.0, Detect (m) 120, Observe (m) 48, Recognize (m) 24, Identify (m) 12.01

Angle of View (H) 86.5°

Angle of View (V) 44.1°

Angle of View (O) 106.4°

Adjustment angle Pan: 0° ~ 360°

Tilt: 0° ~ 68°

Rotate: 0° ~ 360°

shutter Auto/Manual, 1 ~ 1/100000s

Minimum Illumination Color: 0.05 Lux (F2.0, AGC ON)

                                                0Lux with IR

Digital noise reduction 2D/3D DNR

Day/Night IR-cut filter with auto switch (ICR)

S/N >56dB

IR On/Off Control Auto/Manual

wavelength 850nm

IR Range Up to 30m (98ft) IR range

Defog Digital Defog

WDR 120dB

Video

Video Compression Ultra 265, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main Profile

Frame Rate Main Stream:8MP (3840*2160): Max. 20fps;5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps;

2MP(1920*1080): Max. 30fps

Main Stream:8MP (3840*2160): Max. 20fps;5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps;

Main Stream:8MP (3840*2160): Max. 20fps;5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps; 2MP(1920*1080): Max. 30fps

2MP(1920*1080): Max. 30fps

Main Stream:8MP (3840*2160): Max. 20fps;5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps;

2MP(1920*1080): Max. 30fps

Main Stream:8MP (3840*2160): Max. 20fps;5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps;

2MP(1920*1080): Max. 30fps

Main Stream:8MP (3840*2160): Max. 20fps;5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps;

2MP(1920*1080): Max. 30fps

Sub Stream:720P (1280*720): Max. 20fps

Third Stream:4CIF (704*576): Max. 20fps

Video Bit Rate 128Kbps~16Mbps

OSD Up to 4 OSDs

Privacy Mask Up to 4 areas

ROI Up to 2 areas

Motion Detection Up to 4 areas

images

White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reductionDigital noise reduction ONVIF (Profile S, Profile T), API

Smart IR Support

BLC supported

HLC supported

supported

Flip Normal/Vertical/Horizontal/180°

dewarping NA

network

protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS

Compatible Integration ONVIF (Profile S, Profile T), API

client RedOn Pro

web browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

interface

network 10/100M Base-TX Ethernet

Certifications

Certifications CE: EN 60950-1

UL:UL60950-1

FCC: FCC Part 15

General

power DC12V±25%, PoE (IEEE802.3 af)

Power consumption: Max 5.5W

Dimensions (Ø x H) Φ108.7 x 81.1mm (Ø4.3” x 3.2”)

Net Weight 0.45kg (0.99lb)

Surge Protection 2KV

Ingress Protection IP67

Vandal Resistant IK10
